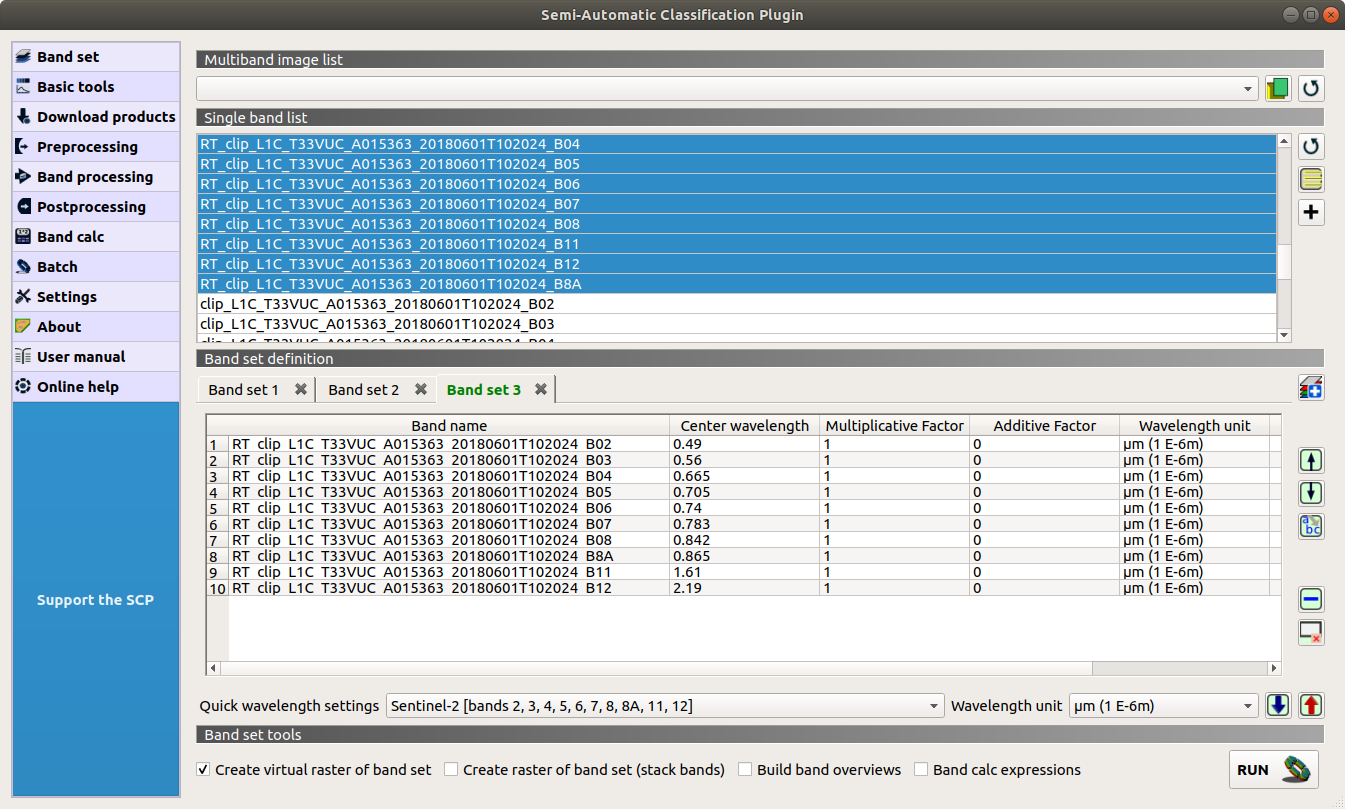

Create another band set with Sentinel surface reflectance images
View compositions using SCP

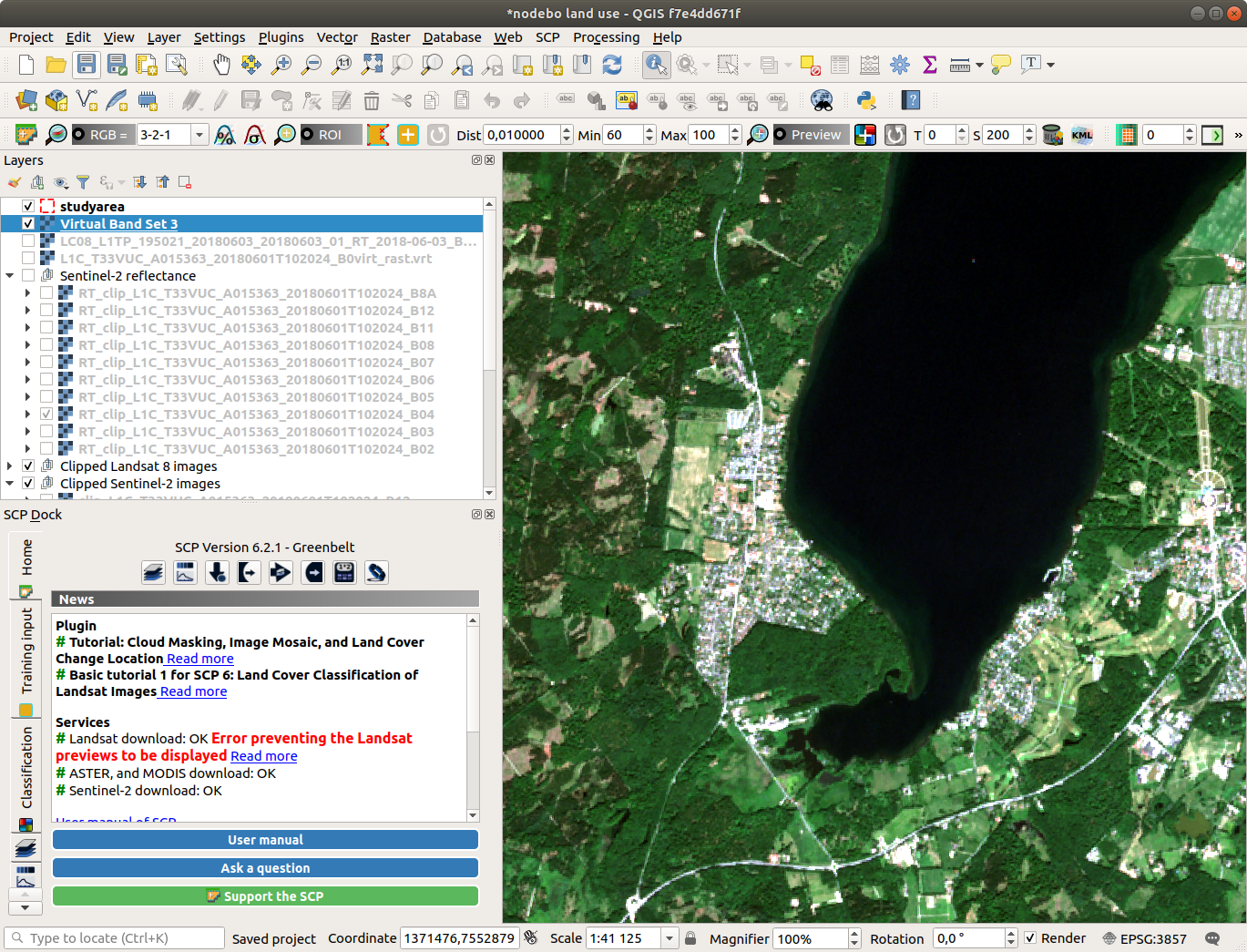

For the selected band set, use the toolbar and select a composition. Select, for example, 3-2-1.
A new temporary band set is added to the layer contents
Play with this.

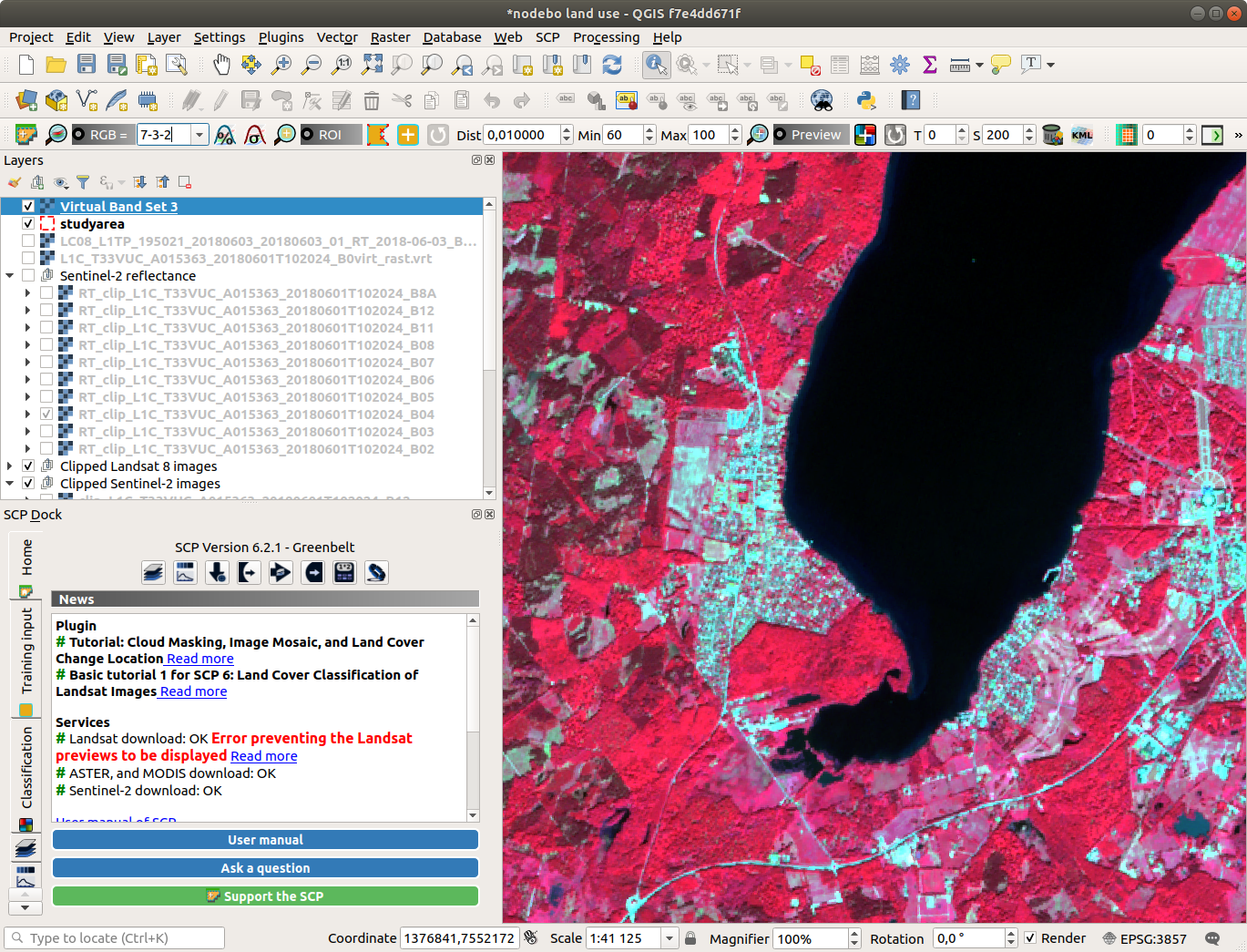

Create a new composition: 7-3-2
Useful combinations:
Natural Colors: 4 3 2 → 3-2-1
False color Infrared: 8 4 3 → 7-3-2
False color Urban: 12 11 4 → 10-9-3
Urban vs vegetation: 4 8 12 → 3-7-10
Agriculture: 11 8 2 → 9-7-1
Atmospheric penetration: 12 11 8a → 10-8-8
Healthy vegetation: 8 11 2 → 7-9-1
Land/Water: 8 11 4 →
Natural Colors with Atmospheric Removal: 12 8 3 →
Shortwave Infrared: 12 8 4
Vegetation Analysis: 11 8 4
Compare with other satellite images
Use QuickMapServices plugin to show the aerial images. TIP: Add the contributed pack to QuickMapServices plugin.
